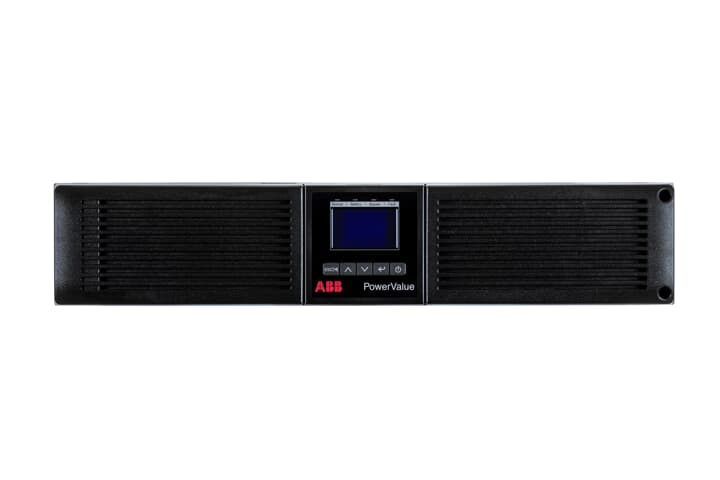

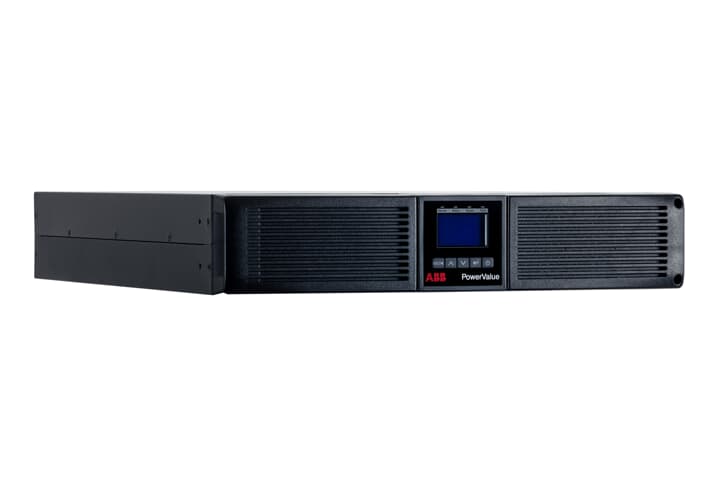

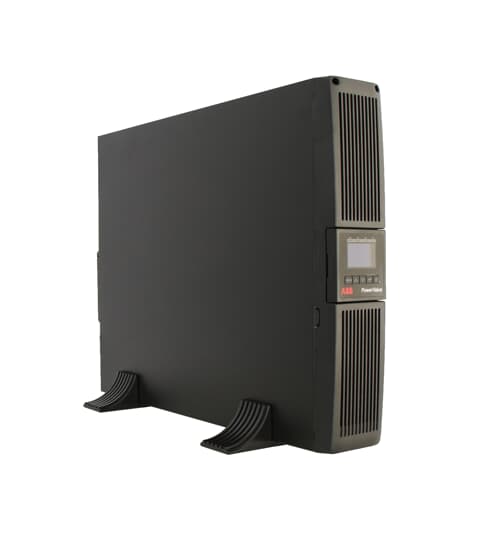

ABB PowerValue 11RT G2 10 kVA B2

$14,849.23

The single-phase UPS for critical applications



ABB’s PowerValue 11 RT G2 is a double-conversion online UPS that guarantees up to 10 kVA of clean, reliable power for your critical single-phase applications. As well as maintaining power to your servers, point-of-sale terminals, workstation clusters, routers, switches, hubs and sensitive electronic equipment, the PowerValue 11 RT G2 also conditions incoming power to eliminate spikes, swells, sags, noise and harmonics.





The PowerValue 11 RT G2 can be used as a standalone UPS device or installed into a standard 19"rack configuration, with connectivity options available for each. Three units of the 6 or 10 kVA models can be configured in parallel to provide redundancy or to increase the system total capacity up to 30 kW. All units can be fitted with up to four battery modules to extend runtime.



Brand ABB
Part number PV11RT10000
Type Online Double Conversion
VA rating 10000
W rating 9000
Input Single Phase,
170 - 290VAC, 40-70Hz,
Hardwired - Input and bypass option
Output Single Phase,
240Vac (Selectable 200/208/220/230/240Vac),
50Hz +/-1%
Outlets

4 x C13 outlets
2 x C19 outlets

Hardwired

Batteries None - need PVBB15 external batteries
Physical Dimensions 573 x 438 x 86.5 mm
Weight (KG) 15.5
Optional Add-ons



Download ABB PowerValue RT11 G2 manual here
